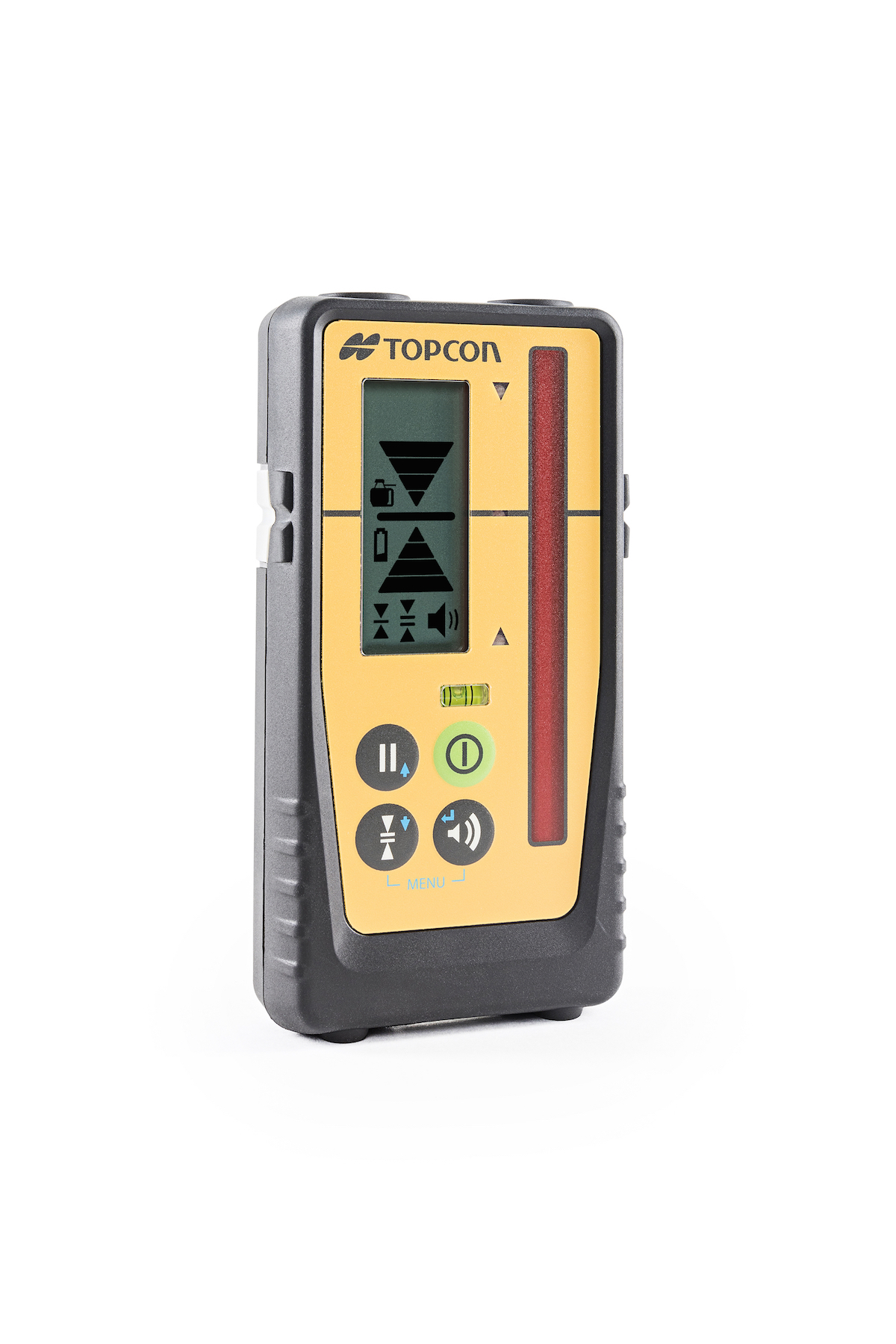

The LS-100D features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures.  The large and bright LCD displays (front and back) feature 9-channels of grade information and digitally display the distance to on-grade. By pressing the hold button, the display is locked so the user can conveniently read the results.

The sensor offers three colored LED’s and a magnet mount for vertical operation, which is designed to be useful for steel erection or operator grade-checking while excavating. Alert icons appear on the LCD if the accompanying Topcon rotating laser instrument is disturbed (HI alert) or when the laser battery is low.

Supplied with the bracket and batteries.

Specification

Working range (diameter): 800m with the RL-H4C, RL-SV2S and RL-200 Series
Vertical detecting range: 90mm (3.5in.); (-30mm to +60mm) (-1.1in. to +2.3in.)
LCD digital readout range: 70mm (2.7in.); (-20mm to +50mm) (-0.7in. to 1.9in.)
Horizontal detecting range: ±45°
Strobe light suppression: Yes
Unit: mm/cm/inch/fractional inch
On-grade resolution: ±0.5mm (±0.02in.)
±1.0mm (±0.05in.)
±2.0mm (±0.10in.)
±5.0mm (±0.20in.)
±10.0mm (±0.50in.)
LCD grade indicators: 9 channels
LED grade indicators: Orange, green, red (on/off selectable)
Display: LCD on each side
Buzzer: Loud/low/off selectable
Bubble tube: Yes
Warning icons: HI alert, low batery (for the RL-H4C, RL-SV2S and RL-200 series)
Battery: One AA/LR6 dry cell battery
Operating time: Up to 45 hours with alkaline batteries
Battery level indicator: LCD icon
Auto shut-off: Approx 30 minutes
Dust/water rating: IP67 (IEC 60529)
Operating temperature: -20°C to 50°C
Dimension (lxwxh): 134x69x25mm
Weight: 190g (including one AA/LR6 battery
Magnet mount: Two round magnets on top
Sensor holder 100: Screw mount (standard compartment)
