Spectra Precision GL1425C Dual Grade Laser Bluetooth w/ HL760 Laserometer
Array
Sales price $ 6050.00
Product Info

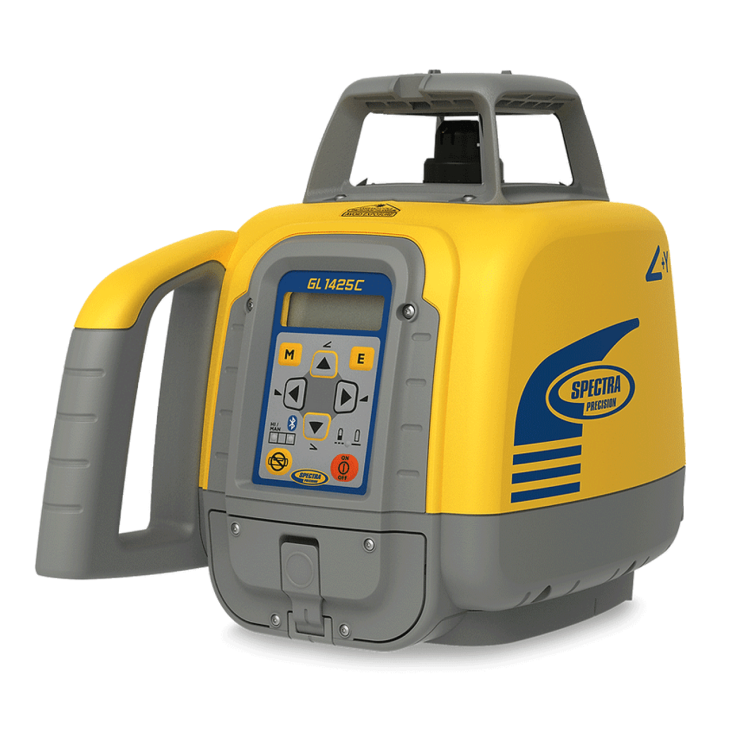

The automatic self-leveling Spectra Precision® GL1425C dual grade laser is the most rugged, cost-effective laser that does three jobs—level, grade, and vertical alignment. Even in harsh jobsite conditions, the GL1425C delivers consistently reliable and accurate performance, enabling you to work faster and smarter.
The GL1425C has Bluetooth built in so it can work with the Spectra Precision Laser Remote App and eliminate the cost of the remote control. The laser can be controlled with your smartphone.
The rugged GL1425C laser can withstand drops of up to 3 feet onto concrete and tripod tip overs up to 5 feet. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.
The GL1425C has options for receivers.The advanced HL760 Digital Readout receiver provides automatic Grade Match which allows measurement of unknown grade values between two points over unknown ground and eliminates time consuming slope calculations. PlaneLok automatically locks on to an existing elevation or vertical alignment point which eliminates all drift or possibility of error due to improper calibration or weather. The CR700 receiver is also an option when a machine mounted display elevation is required.
Features
GL1425C is dual grade plus horizontal and vertical. Simple, accurate dial in grade from -10% to +15%
Up to 2,600 ft working diameter which increases productivity by reducing need for multiple set-ups on a large job site
Fully automatic self-leveling in both grade axis, horizontal, and vertical which provides fast, accurate setup in all applications
Fast setup, minimal training time and automatic self-leveling minimize operating costs and boost productivity
Highly rugged design and patented lighthouse seal protects the rotor head and glass and offers superior drop and weather protection for reduced downtime
2-way full function remote control allows grade changes to be made from anywhere on the jobsite
Temperature calibrated for high accuracy over wide temperature changes
IP66 dust and water-proof to withstand harsh jobsite conditions
Customizable with choice of HL760 or CR600 receivers
Mask mode eliminates interference from other crews on the jobsite
Automatic Grade Match and PlaneLok
Applications
Leveling concrete forms and footers
General construction vertical alignment and plumb such as anchor bolt and form alignment
“Over the top” sewer and storm drain pipe installations
Sports fields, tennis courts and driveways
Grading and excavating
Steep slope road embankments and ditch banks
Ramps and drainage
Includes:
GL1425C Dual Grade LaserTransmitter
HL760 Deluxe Receiver with C70 Rod Clamp
LARGE 5-inch Reception Height
105516 Vertical Adapter for HL Receiver
RC1402N Remote Control
Spartphone Bluetooth Remote Control / Free App
RechargeableBatteries
Battery Charger CH10
Small Carrying Case
Multilanguage CD, Quick user guide and Safety Instructions
5-Year Warranty
Specifications
Leveling Accuracy
± 1.5 mm/30 m 1/16" @ 100 feet 10 arc seconds
Grade Accuracy
±1/8" @ 100 feet
Grade Temperature Drift, typical
1/16" @ 310 feet @ 1° F
Grade range no tilt adjustment
Typical ±9%
Grade range w/ tilt adjustment
±15%
Rotation Speed
300, 600, 900 RPM
Operational Diameter w/ HL760
2,600 feet diameter
GradeMatch Distance
260 feet
Planelok Distance
260 feet
Laser Type
630 - 643 nm
Laser Class
Class 2
Self Leveling Range
Typical ±5° / ±8%
Radio Range HL760
330 feet
Operating Temperature
-4°F to +122°F
Storage Temperature
-13°F to +158°F
Power Source
10,000 mAh NiMH battery pack included - or - 4 each 1.5 Volt D Alkaline Batteries ((Not Included))
